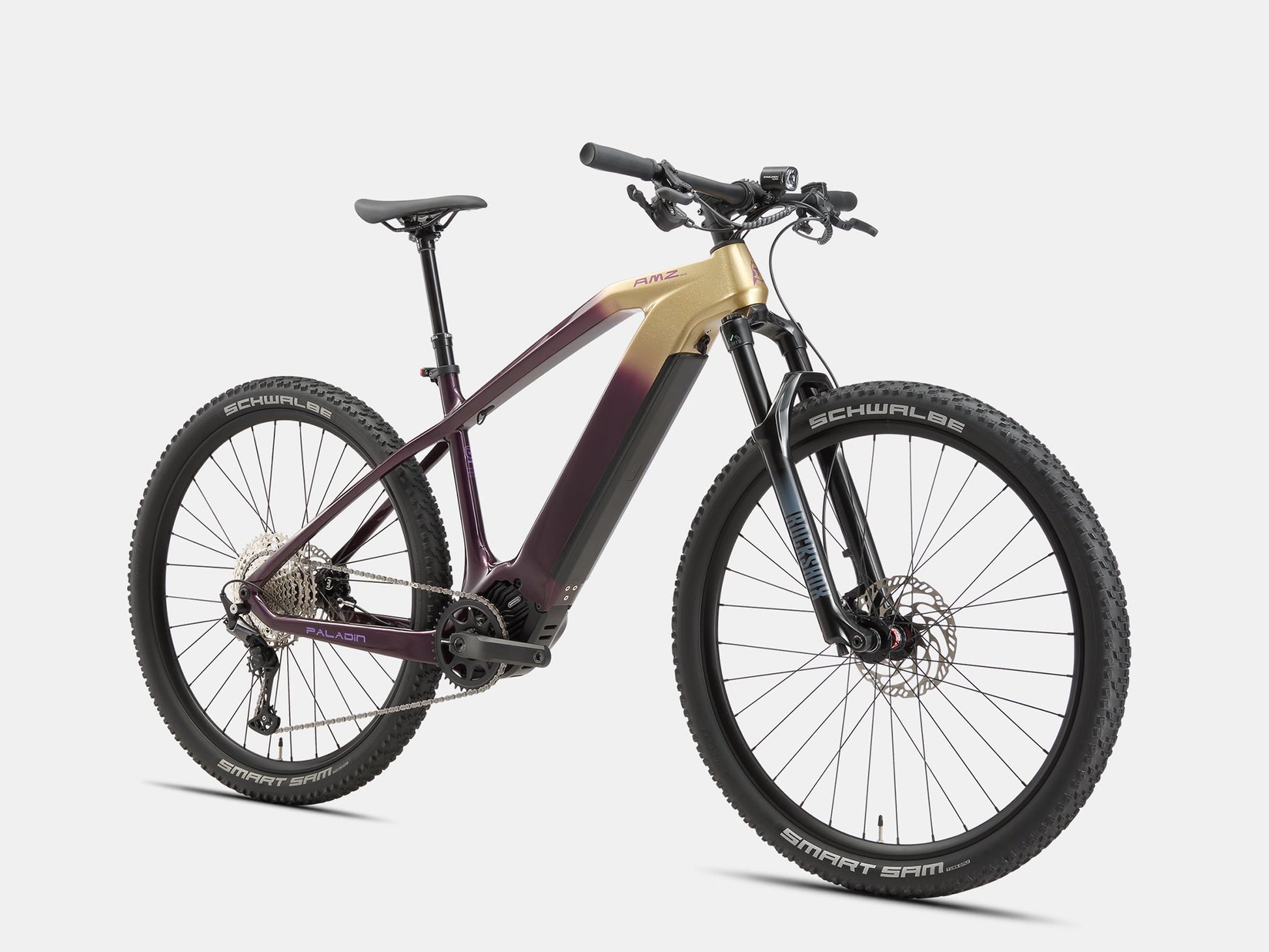

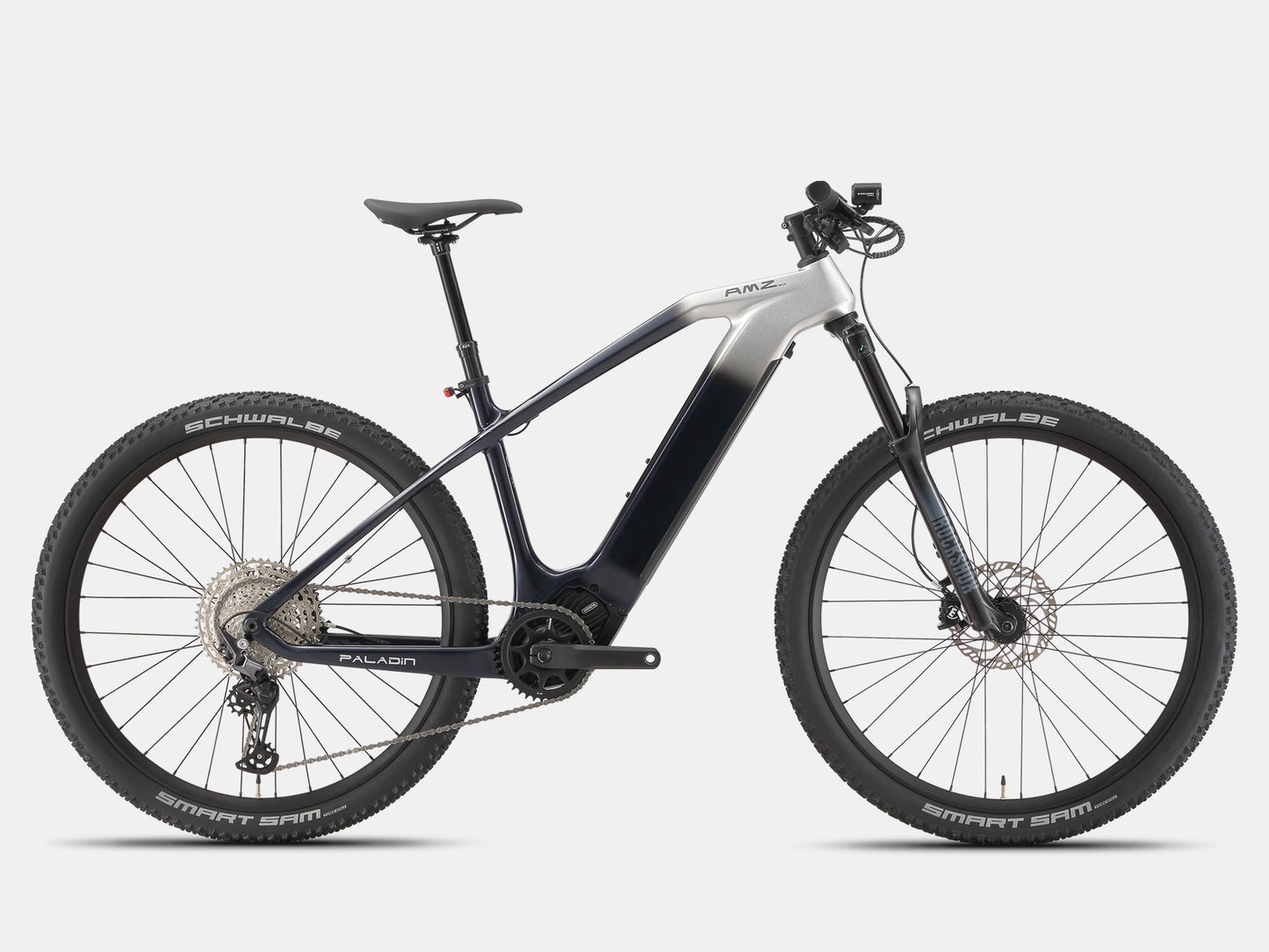

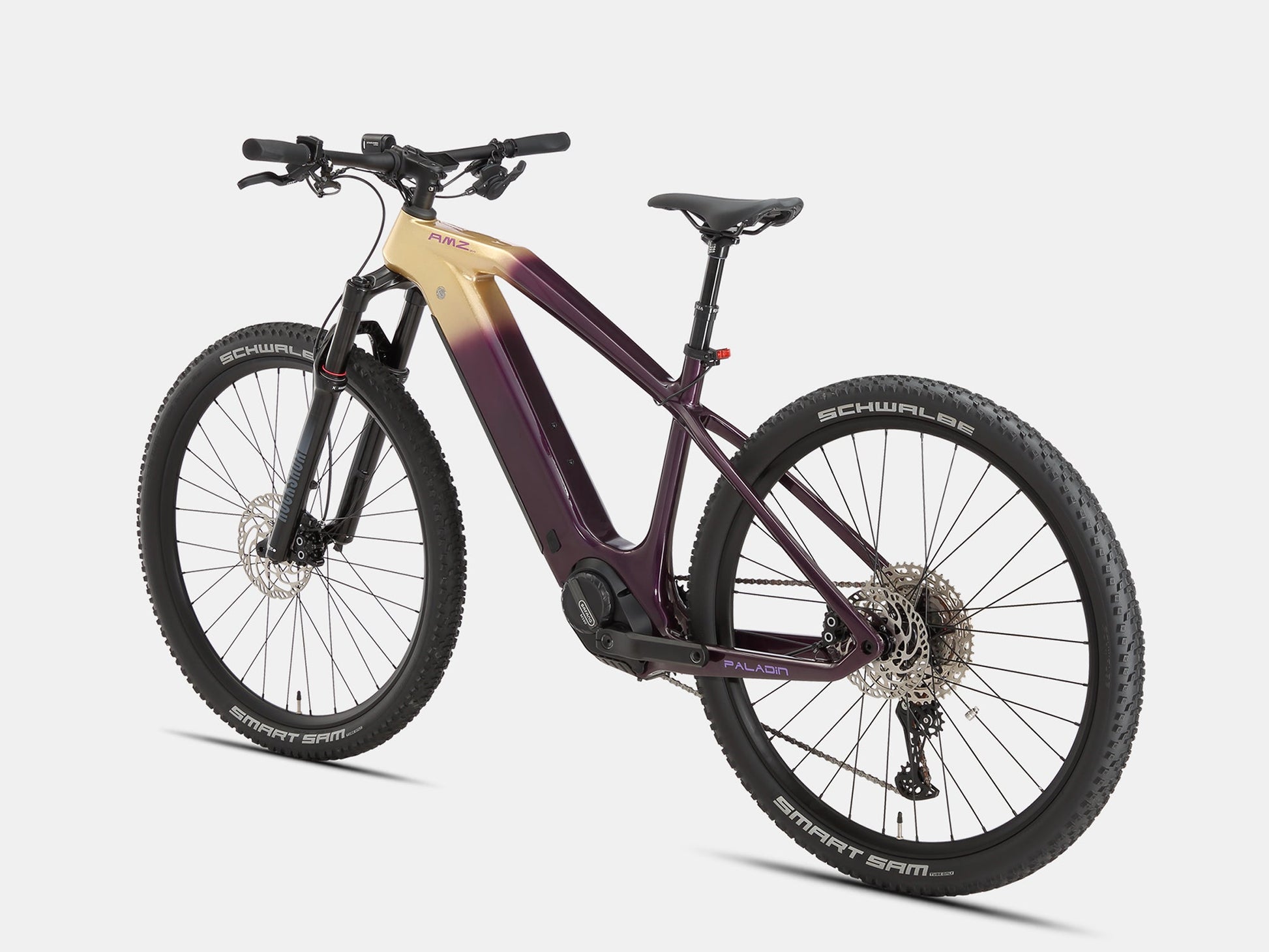

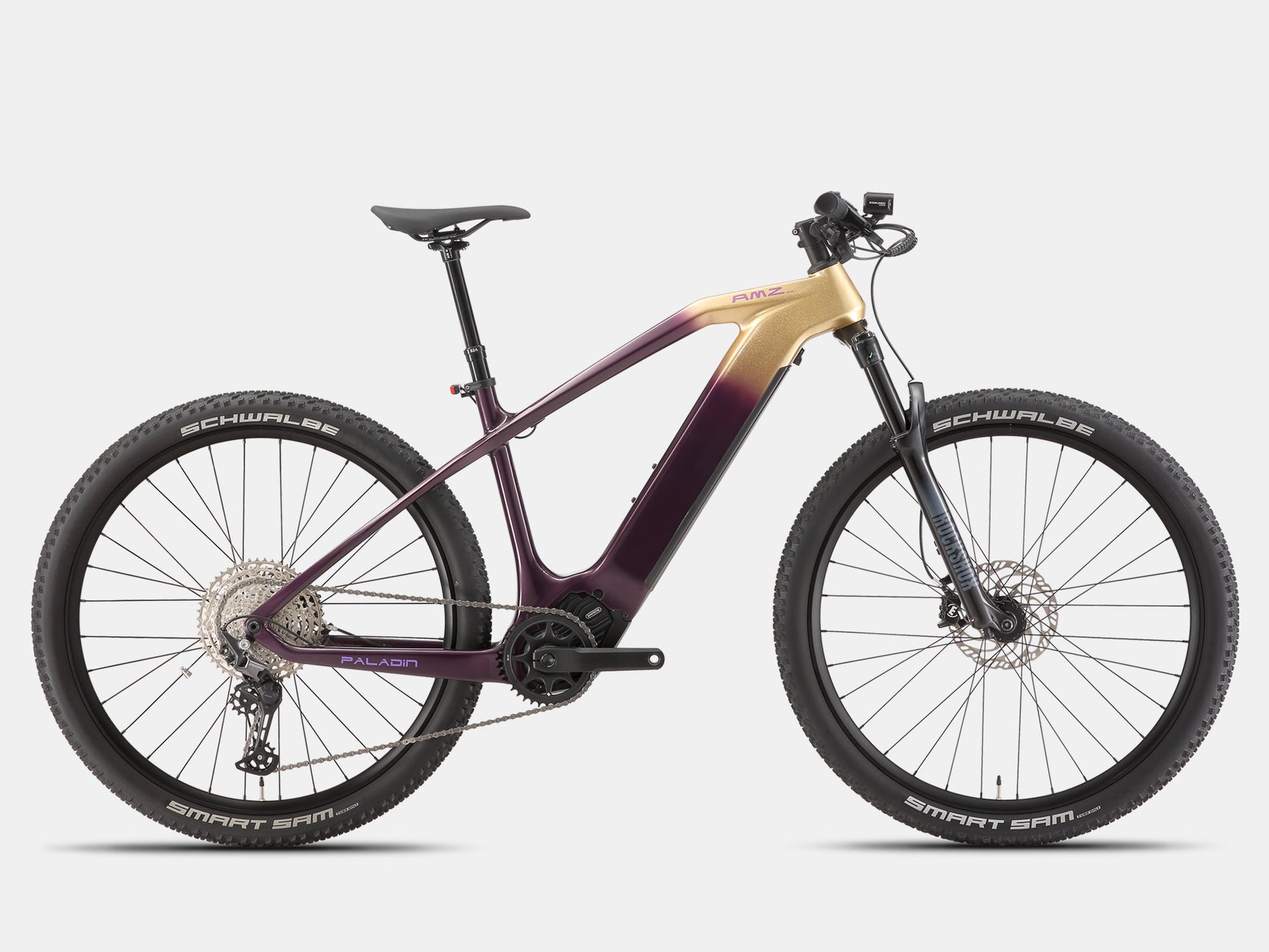

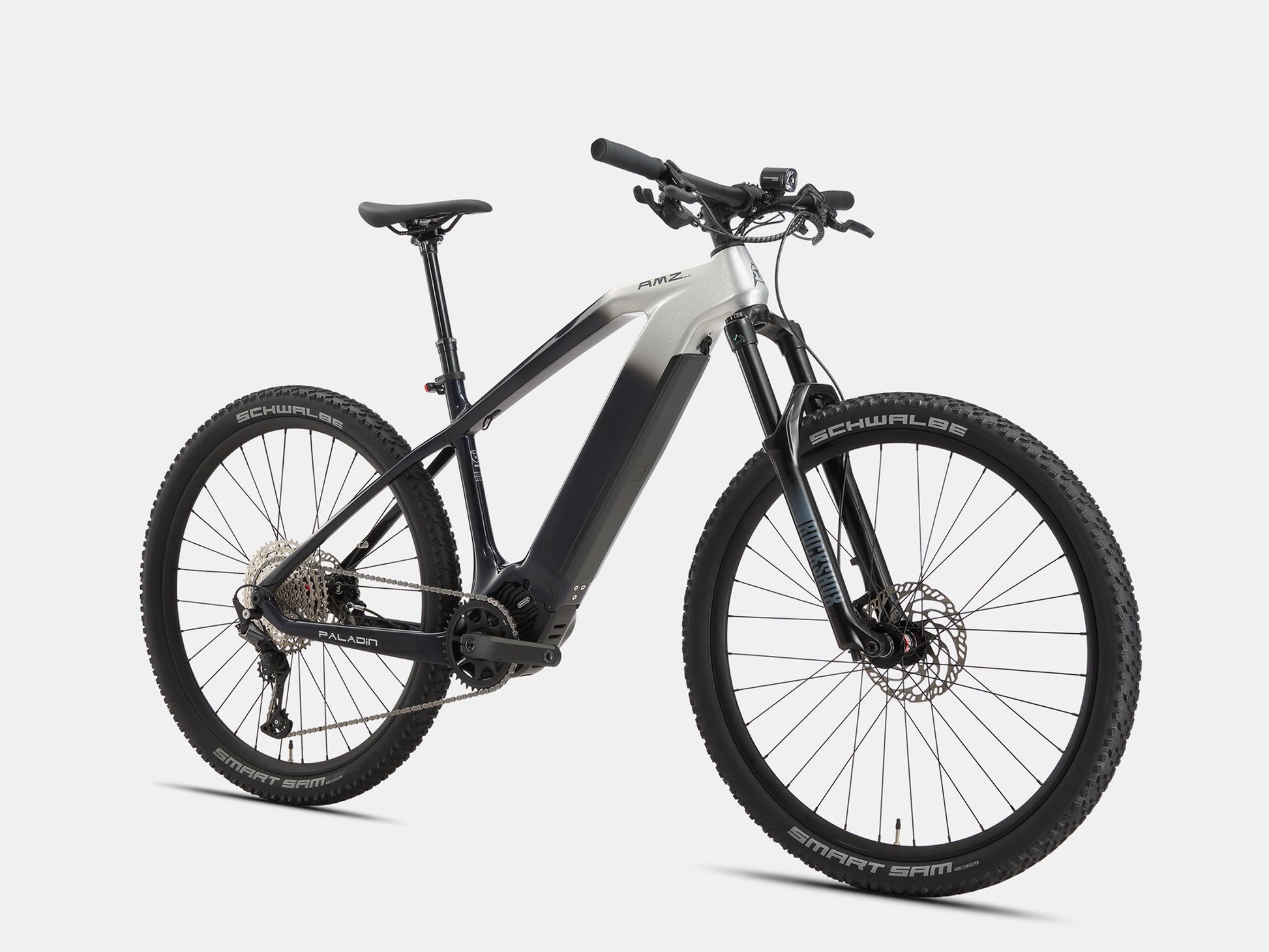

AMZ Paladin Electric XC Mountain Bike, Top Speed 20mph

$4,299.00 USD

Sale Sold out

Shipping calculated at checkout.

SCHEDULE A TEST RIDE AT OUR CAMBRIDGE STORE

Performance Table

E-bike Class	Class 1
Usage Scenario	Light Off-roading + Suburban Riding
Applicable height	64.6-75.6 inches
Weight	47.3 lbs (S) / 48.4 lbs (M) / 49.5 lbs (L)
Voltage	48V
Charging Time	6-8 hours
Maximum Load	264.56 lbs (converted from 120 kg)
Battery Capacity	720 Wh
Motor Power	500W（peak：750W)
Max Pedelec Range	62–75 miles
Max Pedelec Speed	20 mph

Specification Table

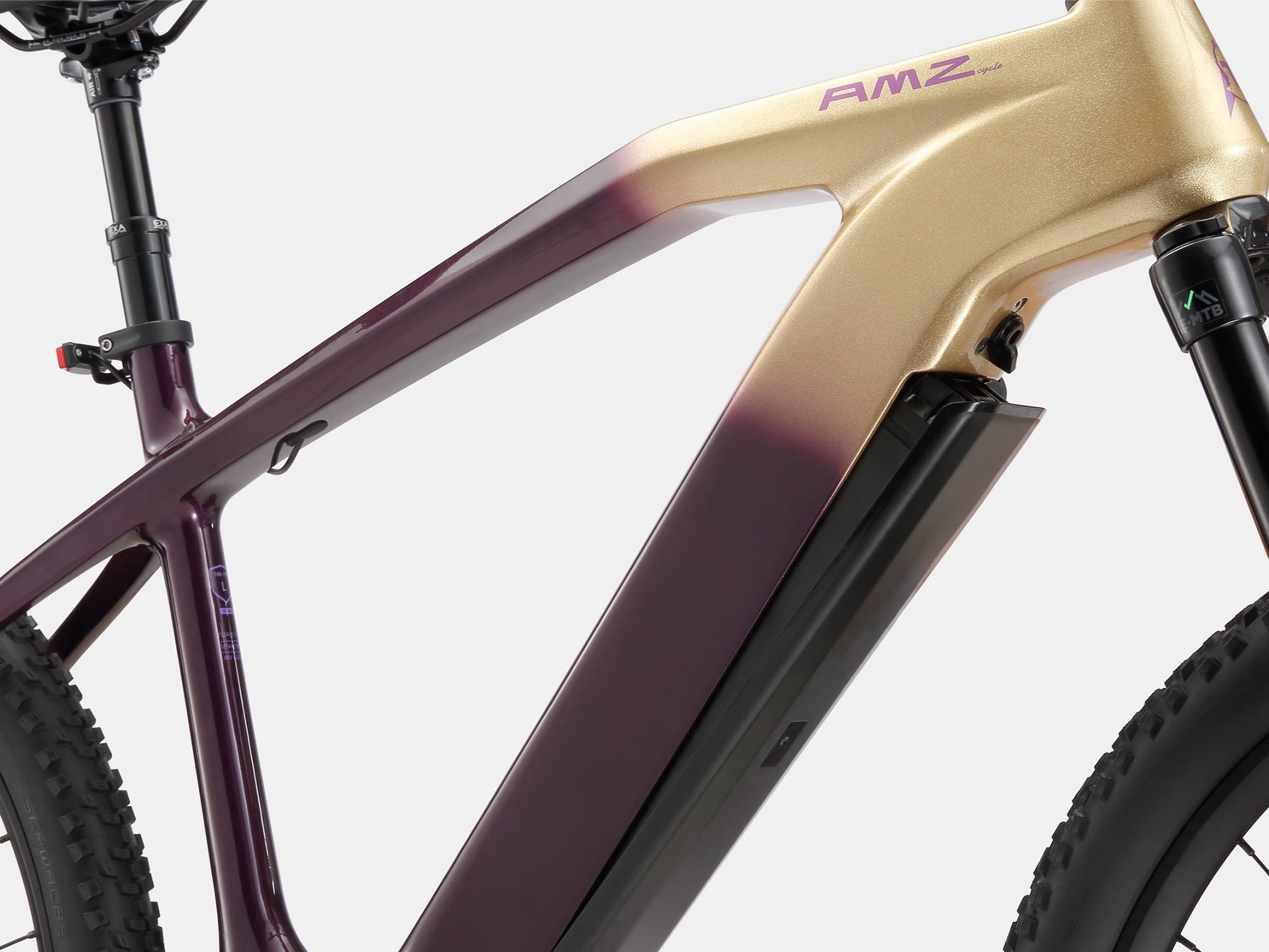

Frame Set	Full Carbon Fiber Frame; 29" (736mm); 148×12mm Axle; Post Mount Brake; UDH; FICR
Headset	FICR; 51.8×8.7mm – 51.8×7.5mm Bearing
Fork	RockShox 35G; 29" (736mm); 15×110mm Axle; Travel: 4.7" (120mm)

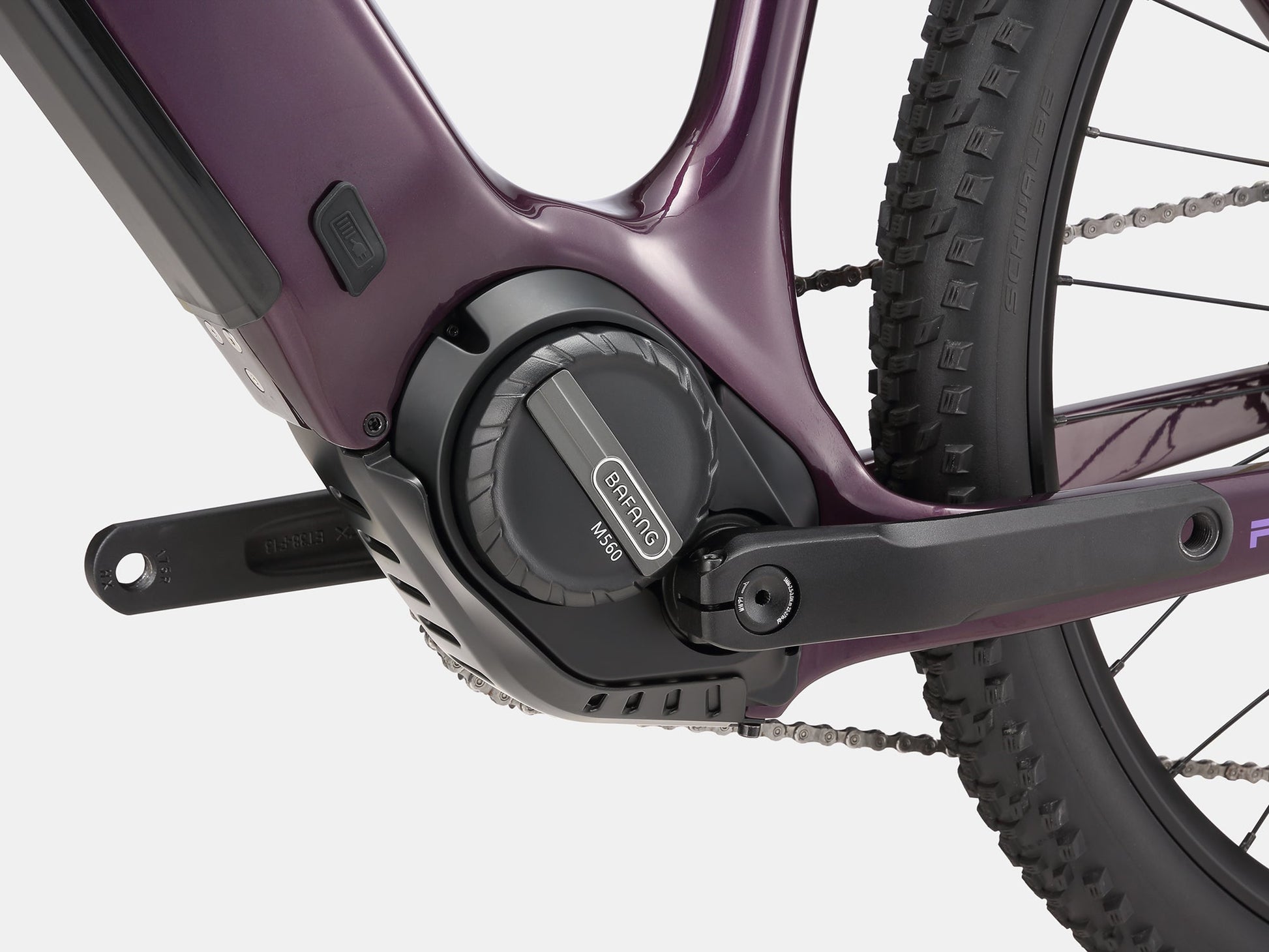

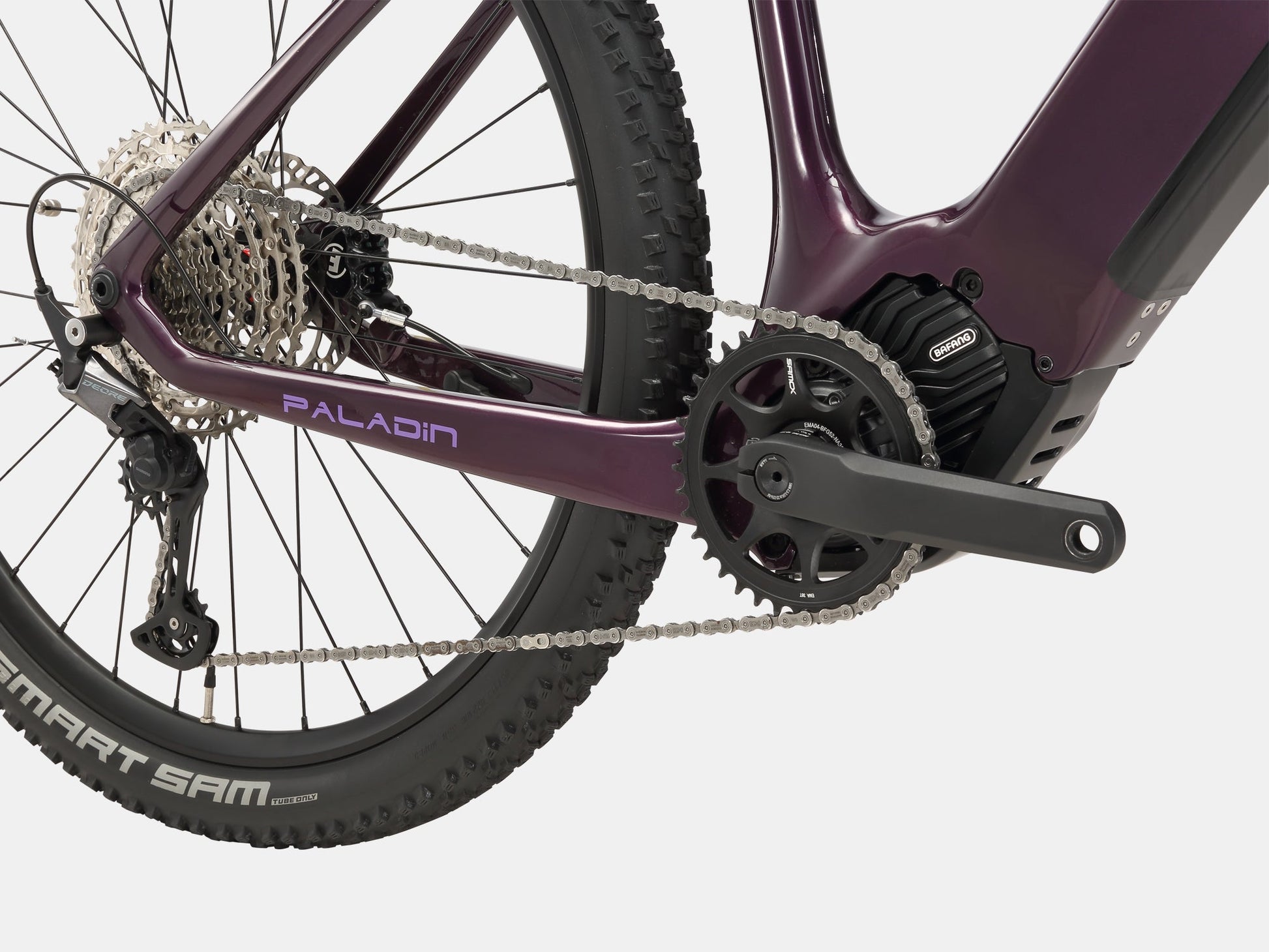

Motor	BAFANG M560; 48V; 500W; 120N·m
Battery	LG 21700 Cell; 48V 15Ah; UL2271; DC2.1; IPX5
Secondary Battery	NA
Controller	BAFANG M560; 48V
Display	BAFANG LCD; 3.5"
Headlight	LED; 12V 0.3A (3.5W)
Taillight	LED; 12V 0.025A (0.3W)
Speed Sensor	BaFang SR SD021.01
Dual Control Lever	NA
Front Brake	MAGURA MT5 Left Hand; 4-piston Caliper; 2-finger Aluminium Lever Blade; SRAM Matchmaker
Rear Brake	MAGURA MT5 Right Hand; 4-piston Caliper; 2-finger Aluminium Lever Blade; SHIMANO I-Spec EV
Front Disc	MAGURA STORM MDR-C; 7.1" (180mm); 6-bolt
Rear Disc	MAGURA STORM MDR-C; 6.3" (160mm); 6-bolt
Shifter	SHIMANO M6100; 12s; I-Spec EV
Rear Derailleur	SHIMANO M6100; 12s
Chainring	SAMOX AL6061; 38T
Crankarm	SAMOX AL6061; 6.5"/6.7"/6.9" (165/170/175mm)
Chain	SHIMANO 12s
Cassette	SHIMANO M6100; 12s; 10–51T
Handlebar	AL6061; Barbore: 31.8mm; Backsweep: 9°; Width: 27.6"/28.3" (700/720mm)
Stem	AL6061; Angle: -7°; Diameter: 31.8mm; Length: 2.4" (60mm)
Saddle	VELO; 10.0"×5.7" (255×145mm)
Pedal	4.6"×4.1" (116×105mm); ZP Bearing
Dropper Post	KS 860i; 30.9mm; Travel: 4.9"/5.9" (125/150mm); Air Spring; I-Spec EV
Dropper Post Controller	KS WESTY 2.0; Matchmaker Shifters
Rims	AL6061; 32H; FV
Front Hubs	NovaTec D041sb; 14G; 32H; 110mm
Rear Hubs	NovaTec D442sb; 13G; 32H; 148mm
Spokes	Front: 14G / Rear: 13G
Nipples	Front: 14G / Rear: 13G; 14mm
Tubes	KENDA 29×2.35"
Tires	Schwalbe Smart Sam; 29×2.35"

View full details

Motor 500W（peak：750W) / BAFANG M560; 48V; 500W; 120N·m / , rated at

Battery 720 Wh / LG 21700 Cell; 48V 15Ah; UL2271; DC2.1; IPX5 / .

Range 62–75 miles

Top Speed 20 mph

Weight 47.3 lbs (S) / 48.4 lbs (M) / 49.5 lbs (L)

Suspension RockShox 35G; 29" (736mm); 15×110mm Axle; Travel: 4.7" (120mm) / with

Brakes MAGURA MT5 Left Hand; 4-piston Caliper; 2-finger Aluminium Lever Blade; SRAM Matchmaker / MAGURA MT5 Right Hand; 4-piston Caliper; 2-finger Aluminium Lever Blade; SHIMANO I-Spec EV

Frame Full Carbon Fiber Frame; 29" (736mm); 148×12mm Axle; Post Mount Brake; UDH; FICR

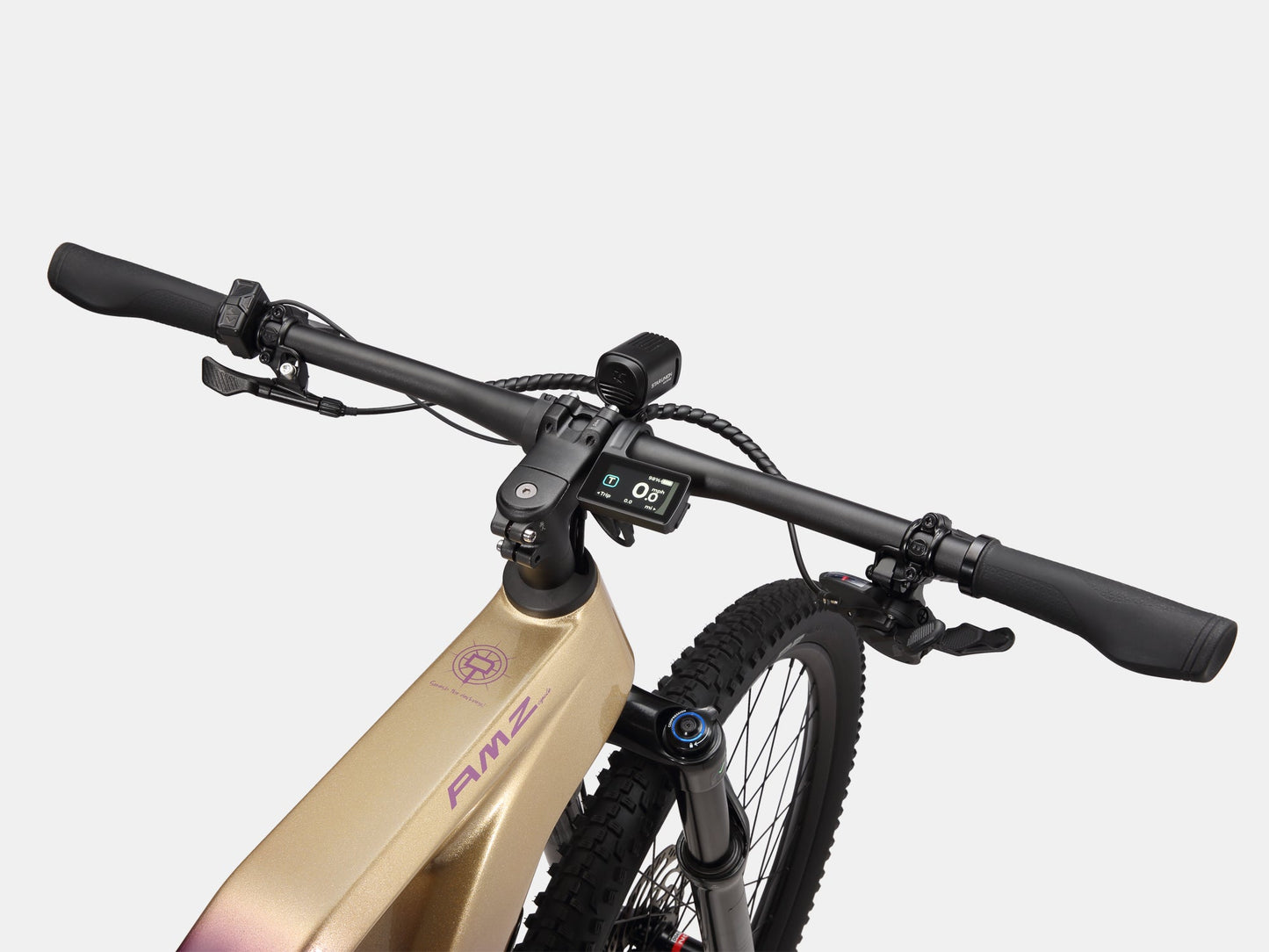

Handlebar Stem AL6061; Barbore: 31.8mm; Backsweep: 9°; Width: 27.6"/28.3" (700/720mm) / AL6061; Angle: -7°; Diameter: 31.8mm; Length: 2.4" (60mm)
