| Frame Set |
AL6061 Frame; 700C; 142*12mm Axle; Flat Mount Brake; FICR |
| Headset |
FICR; 2.040.34 in – 2.040.30 in Bearing (51.88.7mm – 51.87.5mm) |
| Fork |
Full Carbon Fiber; 700C; 12*100mm Axle; FICR |

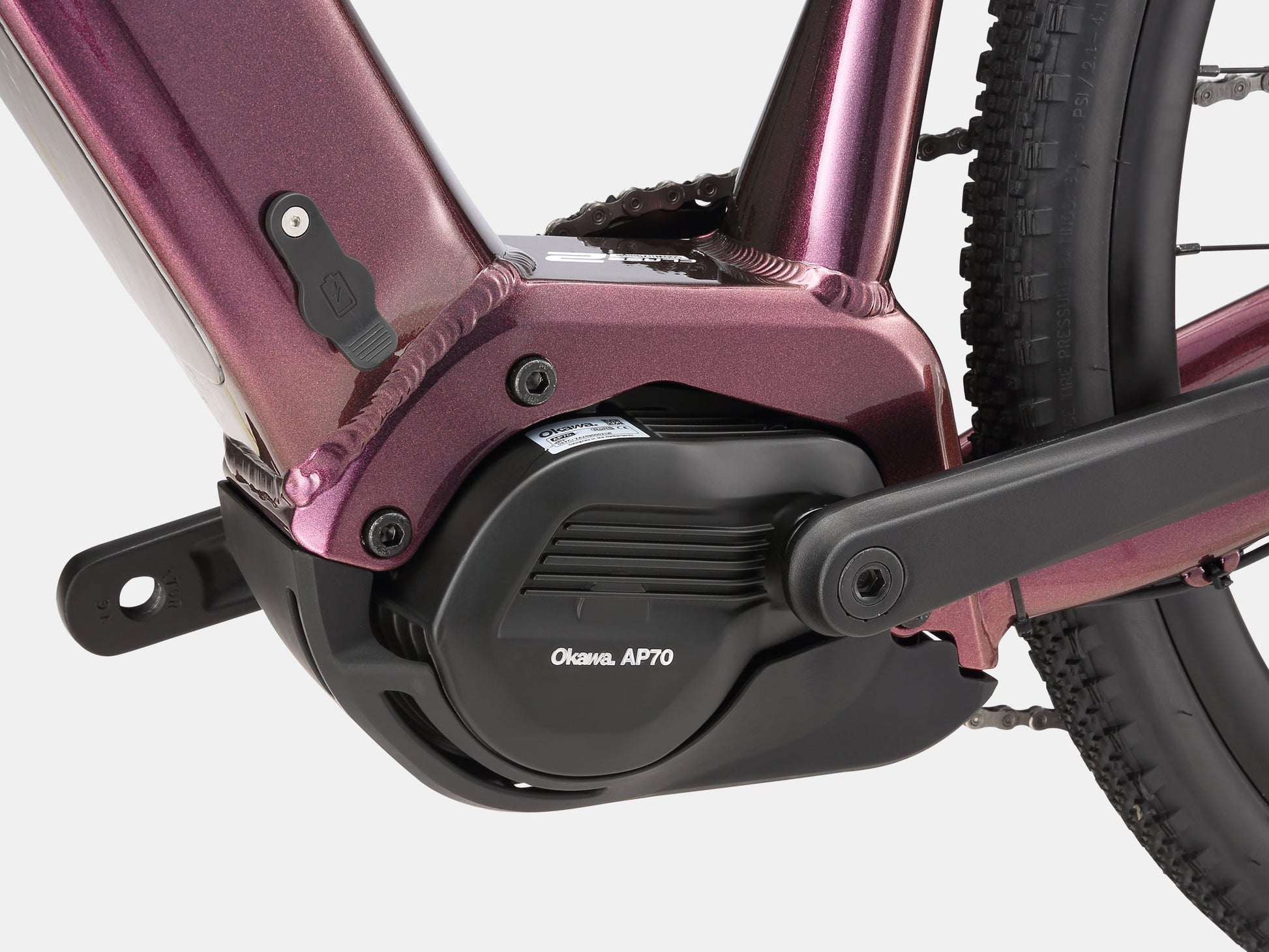

| Motor |
OKAWA AP70; 48V 500W; 88.5 lb-ft (120N.m); ISIS |

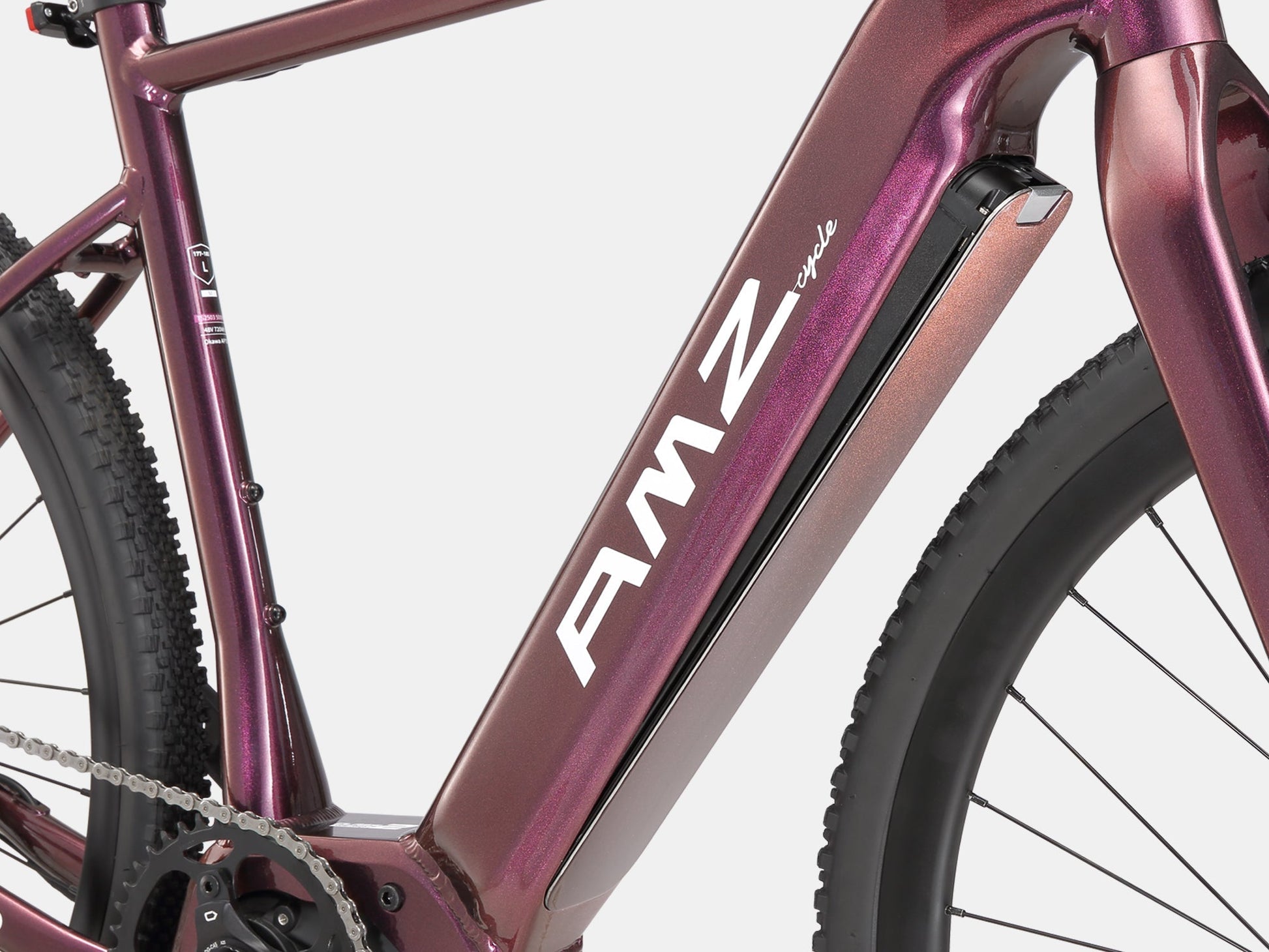

| Battery |
SAMSUNG 21700 Cell; 48V 15Ah 720Wh; UL2271; DC2.1; IPX5 |
| Secondary Battery |
NA |
| Controller |
OKAWA AP70; 48V |
| Display |
DM02 + RM05 2.0inch; IPS; With USB-type C Charging |

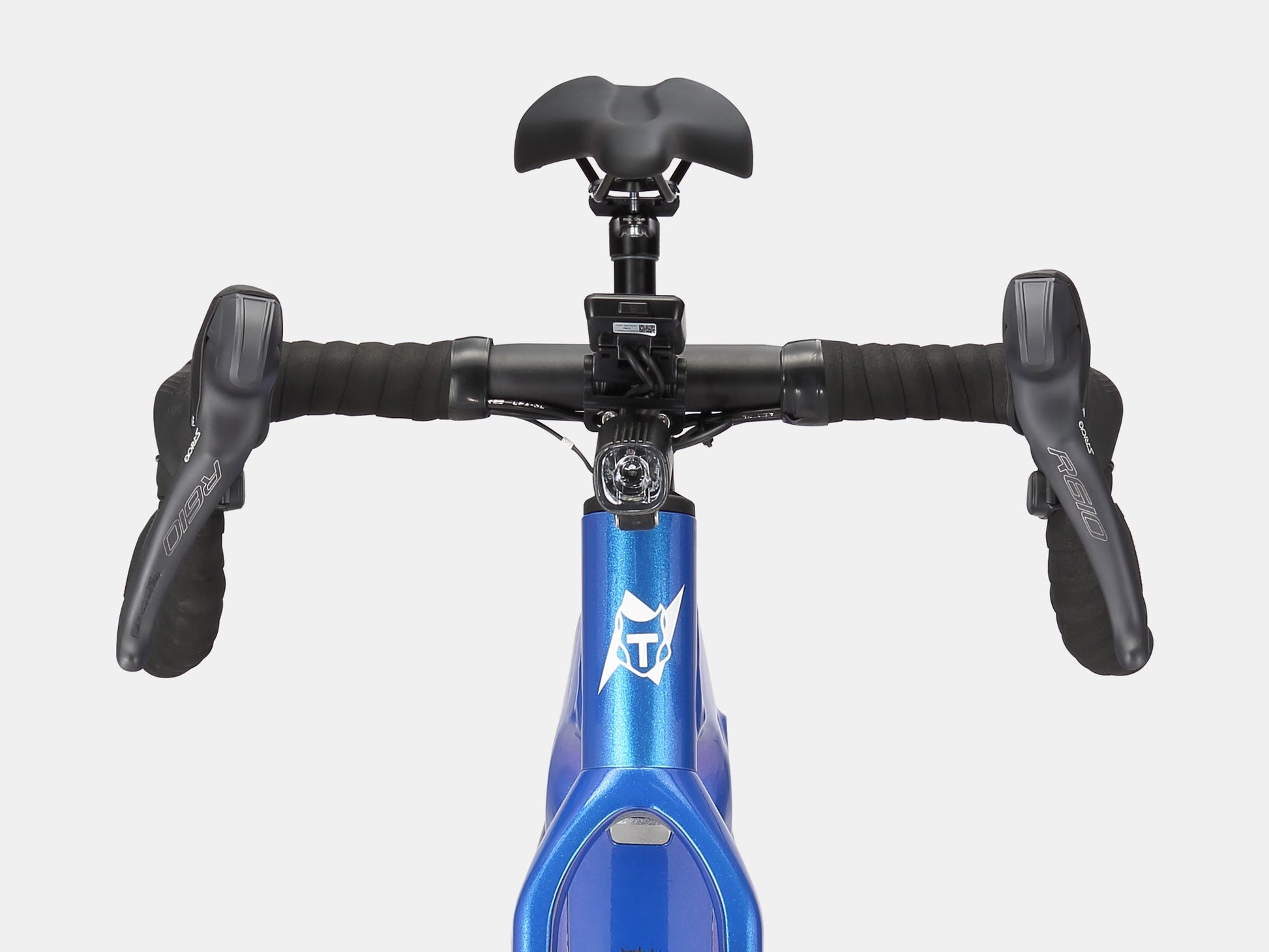

| Headlight |
LED; 12V 0.3A (3.5W) |
| Taillight |
LED; 12V 0.025A (0.3W) |
| Speed Sensor |
OKAWA CDWSS02 |
| Dual Control Lever |
NA |
| Front Brake |
S-RIDE GR610; 2 Piston; FM |
| Rear Brake |
S-RIDE GR610; 2 Piston; FM |
| Front Disc |
SHIMANO SM-RT70; 6.3 in (160mm); 0.07 in (1.8mm); Centerlock |
| Rear Disc |
SHIMANO SM-RT70; 6.3 in (160mm); 0.07 in (1.8mm); Centerlock |
| Shifter |
S-RIDE GR610; 1×12S |
| Rear Derailleur |
S-RIDE GR680; 12s |

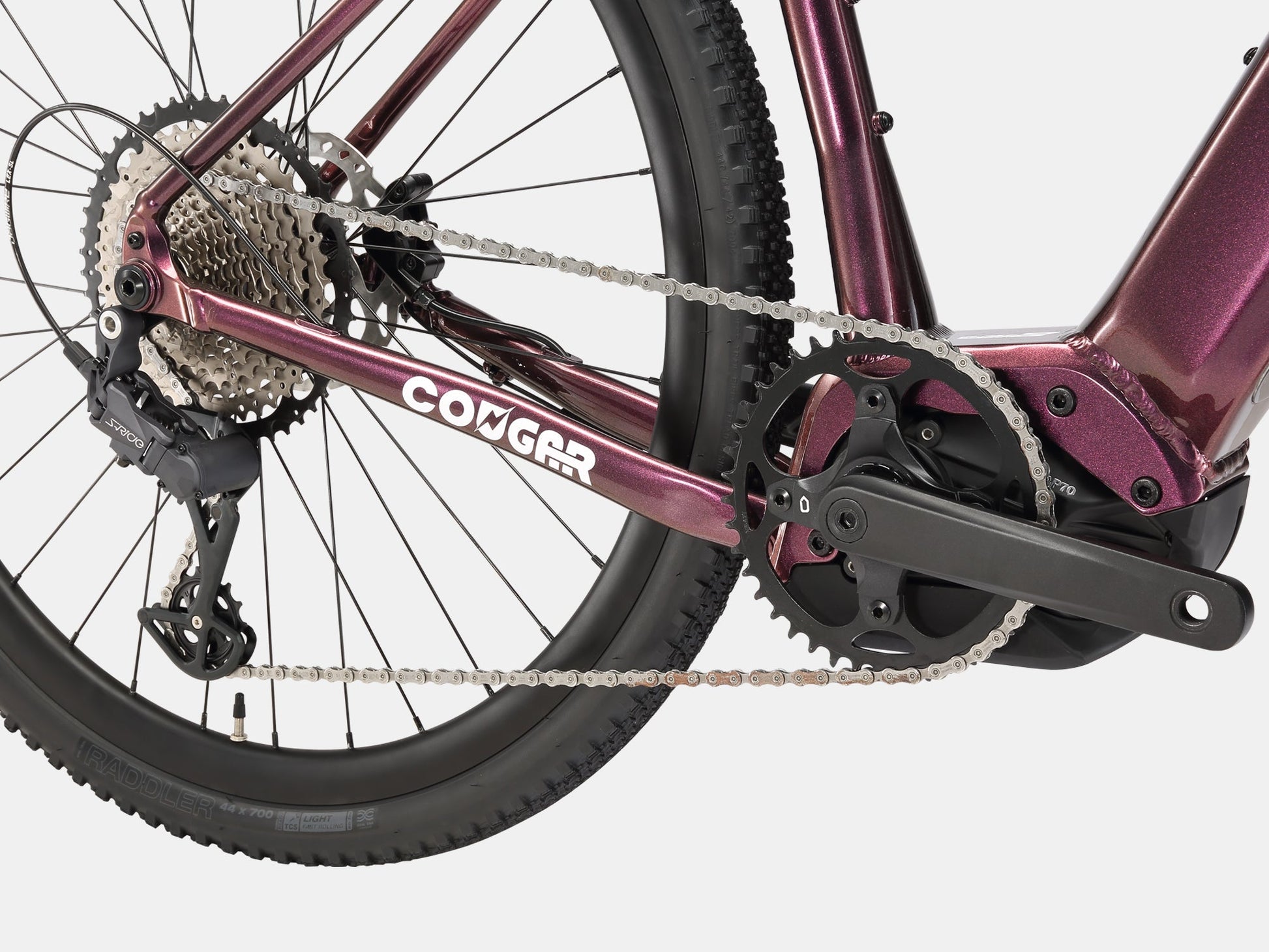

| Chainring |
AL6061; 42T |
| Crankarm |
AL6061; 6.7 in (170mm); ISIS |
| Chain |
SHIMANO 12S |
| Cassette |
S-RIDE M320; 11T-50T; 12s |

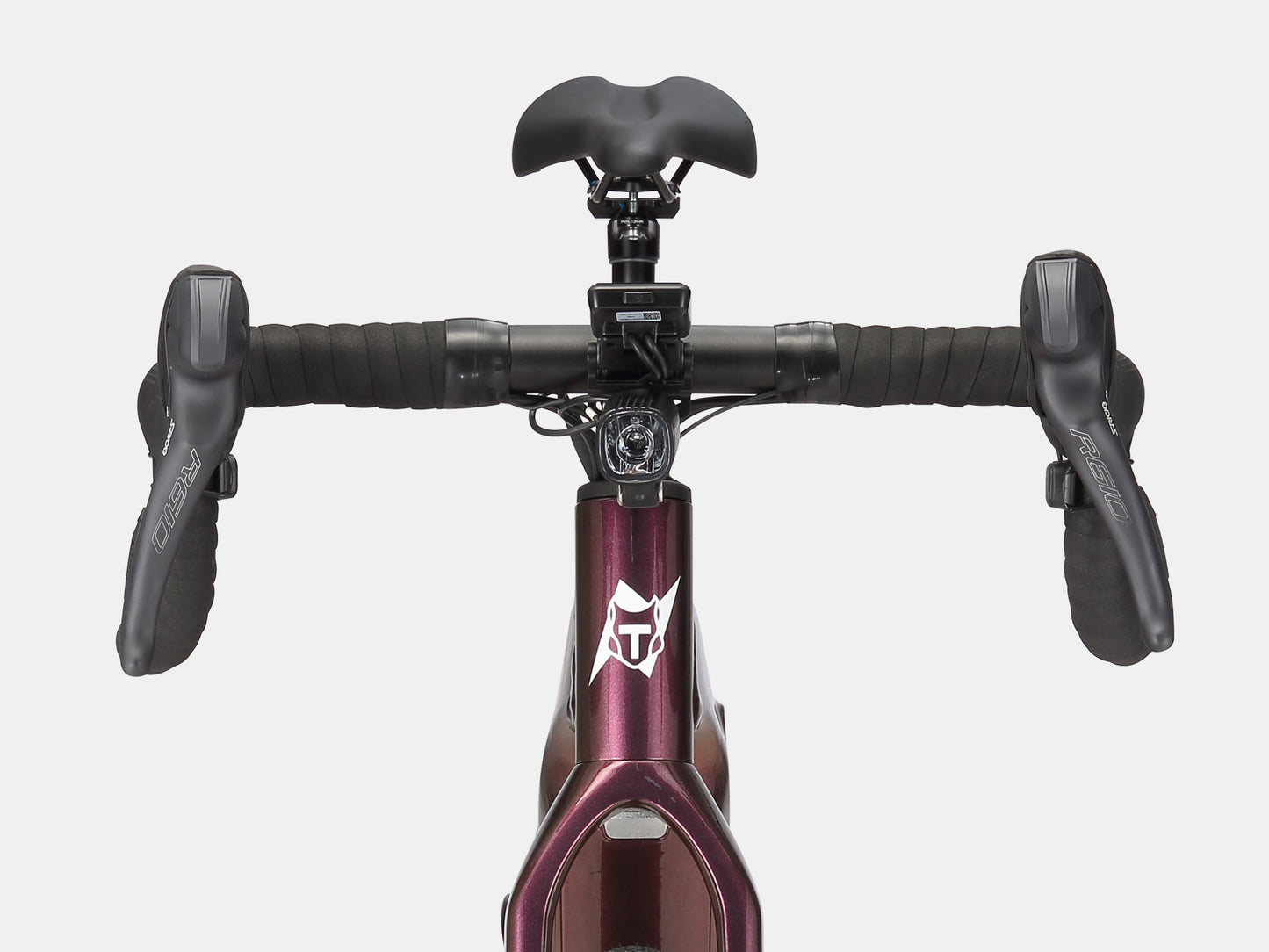

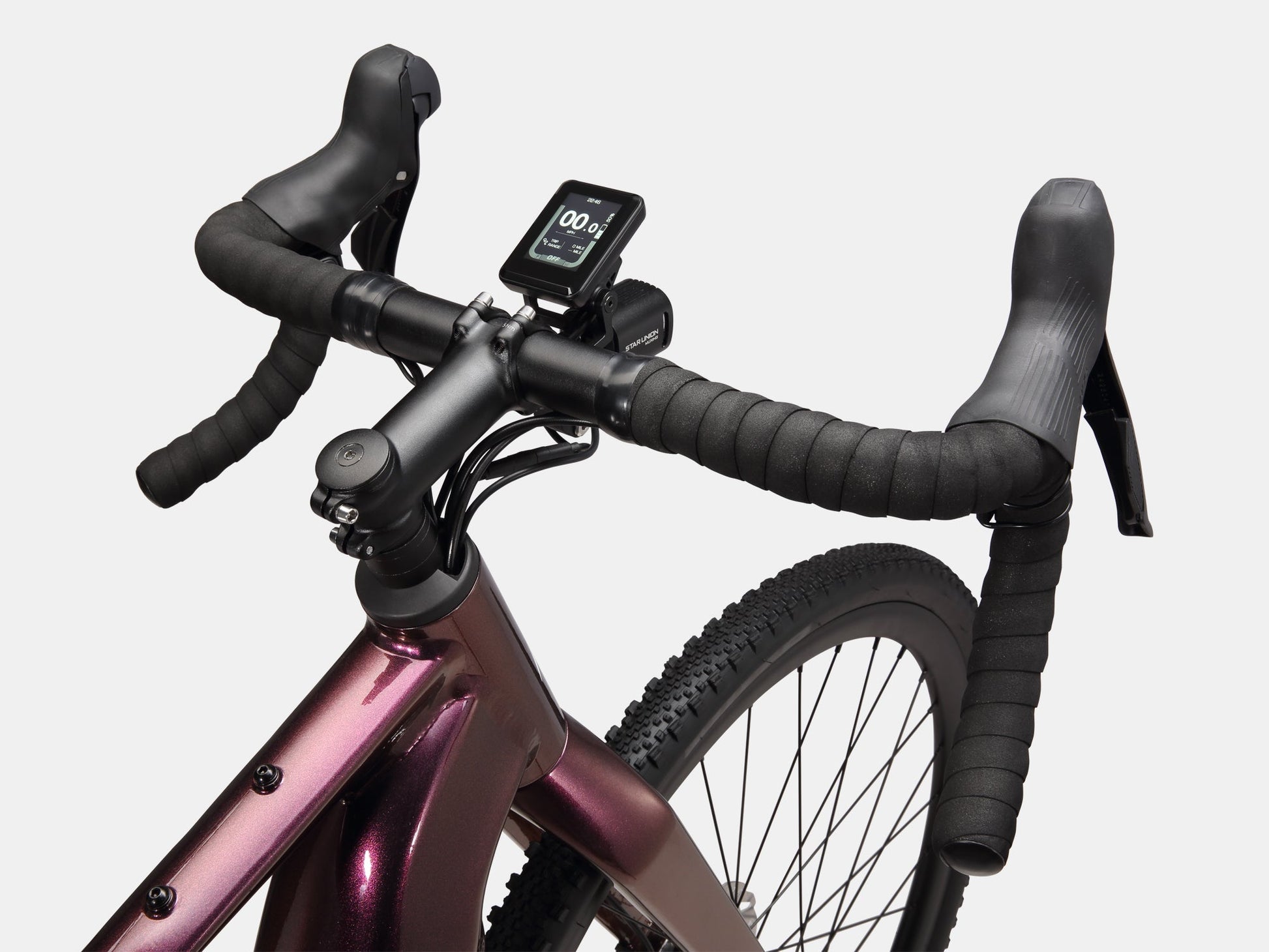

| Handlebar |
AL6061; Width: 16.5/17.3 in (420/440mm); Flare: 20°; Drop Width: 4.9 in (125mm) |
| Stem |
AL6061; Extension: 2.8/3.1/3.5 in (70/80/90mm); Angle: -7°; Diameter: 1.25 in (31.8mm); Steerer: 1.13 in (28.6mm); Height: 1.6 in (40mm); Weight: 3.5 oz (100g) |
| Saddle |
Airfrom; 10.0×5.7 in (255×145mm); Double Density Filler |
| Pedal |
4.1×4.3 in (104.7×108mm); ZP Bearing |
| Dropper Post |
KS 860i Drop Post; 1.22 in (30.9mm); 4.9 in (125mm) Travel; Air Spring |
| Dropper Post Controller |
KS860i |
| Rims |
AL6061; 14G; 32H; FV (Front/Rear) |
| Front Hubs |
NovaTec D981SB; 14G; 32H |
| Rear Hubs |
NovaTec D872SB; 14G; 32H |
| Spokes |
14G |
| Nipples |
14G; 0.55 in (14mm) |
| Tubes |
KENDA; 700*45C |
| Tires |
WTB W110-1320, Raddler 44×700 TCS Light/Fast Rolling 60tpi Dual DNA |
